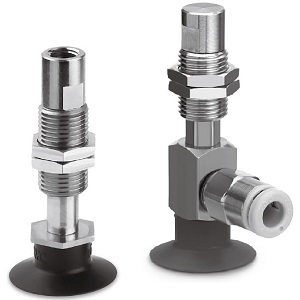

ZP3-T16BS-A5真空吸盘带连接器紧凑型 Φ4、Φ6、Φ8:风琴型 Φ10、Φ13、Φ16:带肋风琴型
2023-06-01ZP3-T16BS-A5紧凑型垫,垂直真空入口,带适配器
ZP3-T16BS-A5吸盘的直径从2到125mm不等,6杯材料和4杯设计(扁平,带肋条的扁平,深吸盘和波纹管),以适应多种应用。垂直真空入口连接可以通过一键式接头或螺纹连接进行。可选缓冲器可订购行程达 50mm。SMC 的 ZP2 系列真空垫的直径从 2 到 340 毫米不等,并提供各种真空垫材料和设计。ZP2 系列旨在标准化为 ZP 系列设计的特殊产品。垫子类型包括:微型吸盘、紧凑型吸盘、喷嘴吸盘、多波纹吸盘、海绵吸盘、无标记吸盘、椭圆形吸盘变体和重型吸盘变体。可选缓冲器可订购行程达 100mm。ZP3 系列吸盘具有紧凑的垫,与 ZP 系列相比,缓冲体缩短了多达 2.2 英寸。可选缓冲器可订购最大 20mm 行程。
带适配器的垂直真空入口
衬垫直径: 1.5, 2, 3.5, 4, 6, 8, 10, 13, 16
垫类型:扁平,带槽平坦,波纹管
垫材料:丁腈橡胶、氟橡胶、硅橡胶、聚氨酯橡胶、导电丁腈橡胶、导电硅橡胶
●小型,节省空间,全长缩短
●Φ2快换接头和倒钩接头可用
字段描述 | 字段取值 | ZP3-T16BS-A5取值描述 |
---|---|---|
连接器材质 | – | 黄铜 |
真空引出方向 | T | 纵 |
吸盘直径 | 16 | Φ16 |
吸盘形状 | B | Φ4、Φ6、Φ8:风琴型 Φ10、Φ13、Φ16:带肋风琴型 |
吸盘材质 | S | 硅橡胶 |
连接螺纹 | A5 | M5X0.8 外螺纹 |
真空引出口 | – | 短螺纹 |
ZP3-T16BS-A5其他特性
字段描述 | ZP3-T16BS-A5取值描述 |
---|---|
系列 | ZP3 |
ZP3-T16BS-A5 Compact Pad, Vertical Vacuum Inlet w/Adapter
The ZP3-T16BS-A5 suction cups are available in diameters from 2 to 125mm, 6-cup materials, and 4-cup designs (flat, flat with ribs, deep and bellows), to suit multiple applications. Vertical vacuum entry connections can be made via one-touch fittings or threaded connections. Optional buffers can be ordered with up to 50mm stroke. SMC’s ZP2 series vacuum pads are available in diameters from 2 to 340mm, and offer a variety of pad materials and designs. The ZP2 series was designed to standardize special products designed for the ZP series. Pad types include: miniature cups, compact cups, nozzle cups, multi-bellows cups, sponge cups, mark-free cups, oval cup variations, and heavy-duty cup variations. Optional buffers can be ordered with up to 100mm stroke. The ZP3 line of suction cups has a compact pad and the buffer body has been shortened by as much as 2.2″ when compared to the ZP series. The optional buffer can be ordered with up to 20mm stroke.
Vertical vacuum entry with adapter
Pad diameter: 1.5, 2, 3.5, 4, 6, 8, 10, 13, 16
Pad type: flat, flat with groove, bellows
Pad material: NBR, FKM, silicone rubber, urethane rubber, conductive NBR, conductive silicone rubber
