AQ3000-N02快速排气阀/螺纹连接
2023-05-25AQ3000-N02快速排气阀

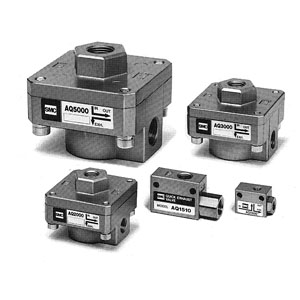

AQ3000-N02快速排气阀在紧凑轻便的阀体中提供高流量。该系列提供唇形、隔膜式和带有内置一键式接头的直列式车身形状。AQ 有多种端口尺寸可供选择。
提供唇形或隔膜型
高流量
结构紧凑，重量轻
低压差
端口尺寸范围从 M5 到 3/4
●机种丰富
| 字段描述 | 字段取值 | AQ3000-N02取值描述 |
|---|---|---|
| 阀体大小 | 3 | 3/8 |
| 构造 | 0 | 膜片式 |
| 基准 | 0 | M5X0.8 |
| 螺纹的种类 | N | NPT |
| 连接口径 | 02 | 1/4 |
| 可选项 | – | 标准(-5~60℃) |
AQ3000-N02 Quick Exhaust Valve
The AQ3000-N02 series quick exhaust valve offers high flow capacity in a compact and lightweight body. The series is available in lip, diaphragm and an inline body shape with built-in one-touch fittings. The AQ is available in a variety of port sizes.
Available in lip or diaphragm type
High flow capacity
Compact and light weight
Low differential pressure
Port size range from M5 to 3/4
