HRS090-A-40深冷器标准型200V/400V/460V规格

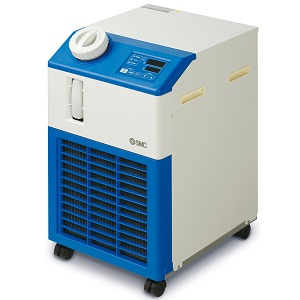

2023-05-22HRS090-A-40大容量紧凑型冷水机组, 200~230/400/460 VAC
HRS090-A-40是一款具有大制冷量的紧凑型冷水机组。可选择9.0kW风冷或10.5kW水冷制冷回路。冷却器套件还包含冷却剂回路,包括泵、储罐、热交换器和传感器监控的流路。设定温度由PID控制,同时监控系统41个警报。其他功能包括加热功能、串行通信和用于室内移动的可锁定脚轮。
制冷量:9kw(风冷),10.5kW(水冷)
温度范围设置:5 至 35°C
温度稳定性:±0.5°C
电源要求:三相200VAC;50赫兹;200~230伏交流电 60Hz;380~415V 交流 50/60Hz;460~480V 交流 60Hz
制冷剂: R410A 氢氟碳化物
循环液:自来水或去离子水或15%乙二醇溶液
●冷却能力:9kW
●温度稳定性:±0.5°C
●设定温度范围:5~35°C
●最高使用周围温度:45°C
●电源:三相AC200~230V、AC380~415V
字段描述 | 字段取值 | HRS090-A-40取值描述 |
---|---|---|
冷却能力 | 090 | 9kW |
冷却方式 | A | 空冷冷冻式 |
配管螺纹种类 | – | Rc |
电源 | 40 | 三相AC380~415V(50/60Hz) |
可选项a | – | 无 |
可选项b | – | 无 |
可选项c | – | 无 |
可选项d | – | 带单位切换功能 |
HRS090-A-40 Large Capacity Compact Chiller, 200~230/400/460 VAC
HRS090-A-40 is a compact chiller with large cooling capacity. A 9.0kW air cooled or 10.5kW water cooled refrigeration circuit can be selected. The chiller package also contains the coolant circuit, including pump, tank, heat exchanger, and sensor monitored flow path. Set temperatures are PID controlled, while the system is monitored for 41 alarms. Additional features include a heating function, serial communications, and lockable casters for indoor mobility.
Cooling capacities: 9kw (air cooled), 10.5kW (water cooled)
Temperature range setting: 5 to 35°C
Temperature stability: ±0.5°C
Power supply requirements: 3-phase 200VAC; 50Hz; 200~230VAC 60Hz; 380~415VAC 50/60Hz; 460~480VAC 60Hz
Refrigerant: R410A HFC
Circulating fluid: tap or deionized water or 15% ethylene glycol solution
